THERMAL TRANSFER LABELS ROLLED 4" OD - 1" ID CORES
Part Number	Image	#Ac	Label Size	Carrier Width	Horiz Perf	Qty Per Roll	Rolls Per Box	Qty Per Box	Wt. (lbs.) Per Carton

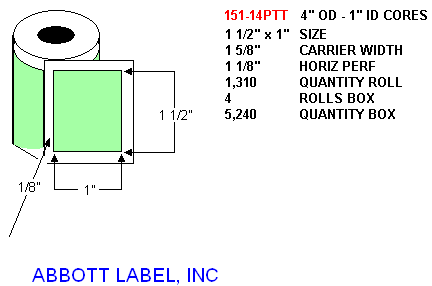

151-14PTT	IMAGE	1	1 1/2 X 1 - 1	1 5/8	1 1/8	1,310	4	5,240	4
21-14PTT	IMAGE	1	2 X 1 - 1	2 1/8	1 1/8	1,400	4	5,600	5

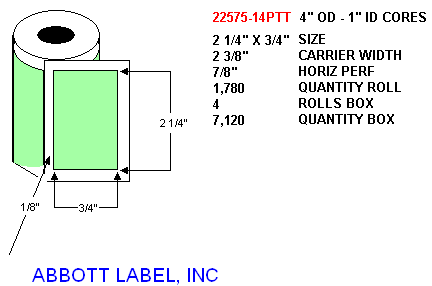

22575-14PTT	IMAGE	1	2 1/4 X 3/4 - 1	2 3/8	7/8	1,780	4	7,120	5

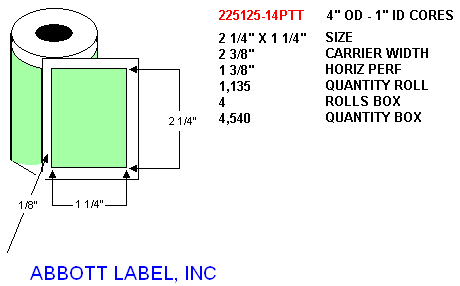

225125-14PTT	IMAGE	1	2 1/4 X 1 1/4 - 1	2 3/8	1 3/8	1,135	4	4,540	5

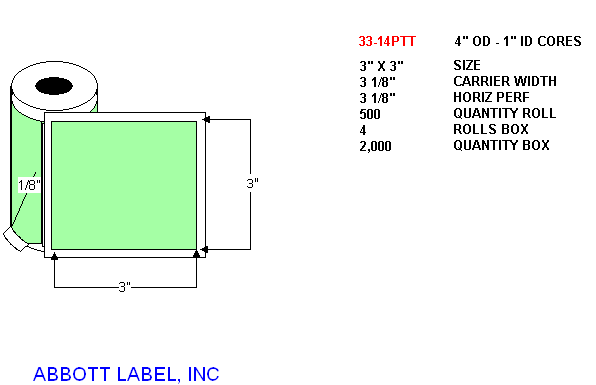

33-14PTT	IMAGE	1	3 X 3 - 1	3 1/8	3 1/8	500	4	2,000	6

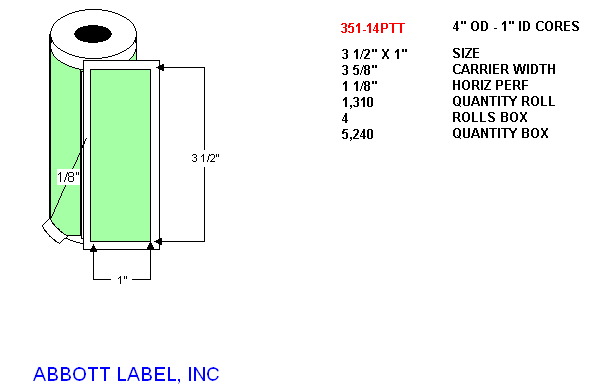

351-14PTT	IMAGE	1	3 1/2 X 1 - 1	3 5/8	1 1/8	1,310	4	5,240	7

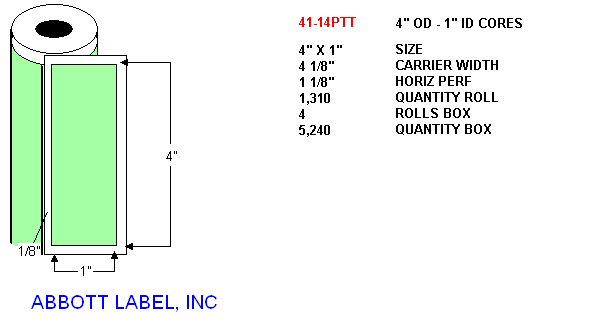

41-14PTT	IMAGE	1	4 X 1 - 1	4 1/8	1 1/8	1,310	4	5,240	7

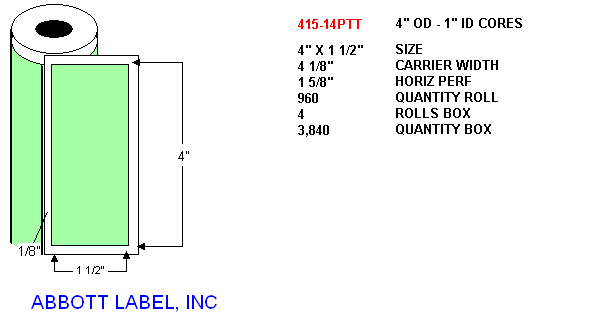

415-14PTT	IMAGE	1	4 X 1 1/2 - 1	4 1/8	1 5/8	960	4	3,840	8

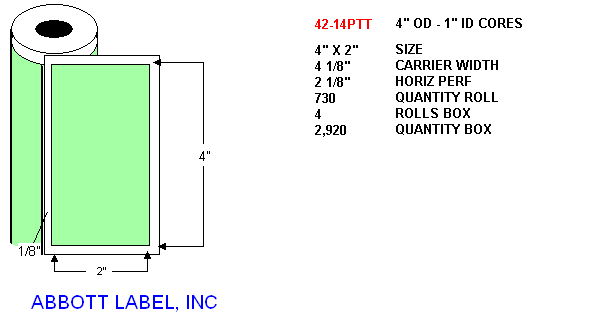

42-14PTT	IMAGE	1	4 X 2 - 1	4 1/8	2 1/8	730	4	2,920	8

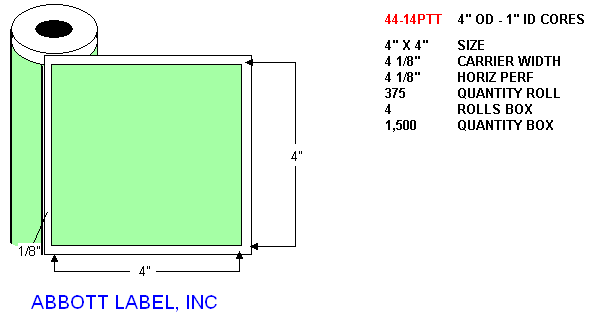

44-14PTT	IMAGE	1	4 X 4 - 1	4 1/8	4 1/8	375	4	1,500	8

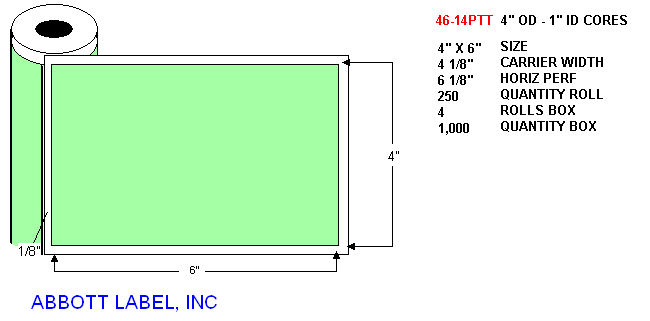

46-14PTT	IMAGE	1	4 X 6 - 1	4 1/8	6 1/8	250	4	1,000	8
POLYESTER THERMAL TRANSFER LABELS ROLLED 4" OD - 1" ID Cores
Part Number	Image	#Ac	Label Size	Carrier Width	Horiz Perf	Qty Per Roll	Rolls Per Box	Qty Per Box	Wt. (lbs.) Per Carton

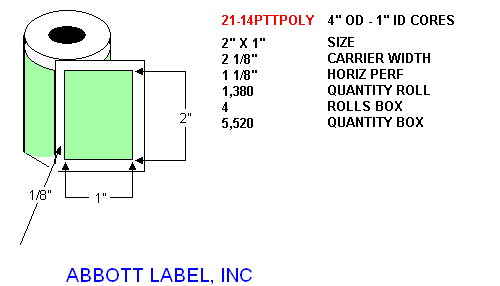

21-14PTTPOLY	IMAGE	1	2 X 1 - 1	2 1/8	1 1/8	1,380	4	5,520	5
THERMAL TRANSFER LABELS ROLLED 5" OD - 1" ID Cores
Part Number	Image	#Ac	Label Size	Carrier Width	Horiz Perf	Qty Per Roll	Rolls Per Box	Qty Per Box	Wt. (lbs.) Per Carton

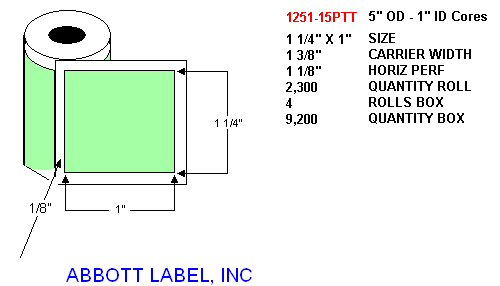

1251-15PTT	IMAGE	1	1 1/4 X 1 - 1	1 3/8	1 1/8	2,300	4	9,200	5

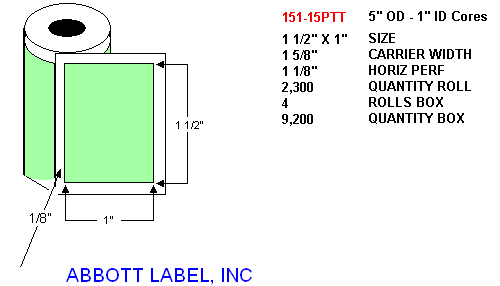

151-15PTT	IMAGE	1	1 1/2 X 1 - 1	1 5/8	1 1/8	2,300	4	9,200	5

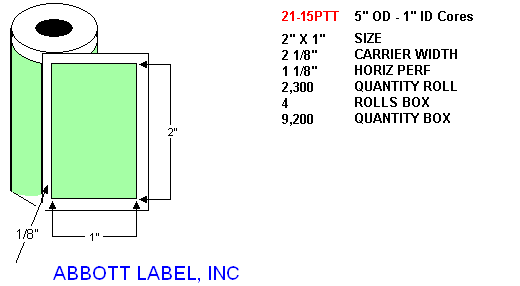

21-15PTT	IMAGE	1	2 X 1 - 1	2 1/8	1 1/8	2,300	4	9,200	7

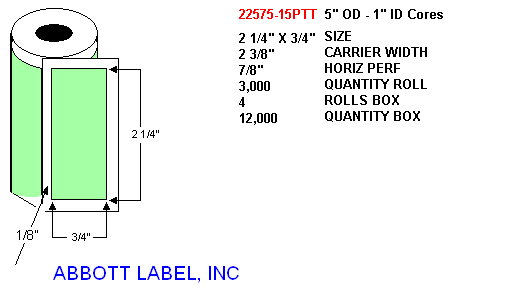

22575-15PTT	IMAGE	1	2 1/4 X 3/4 - 1	2 3/8	7/8	3,000	4	12,000	7

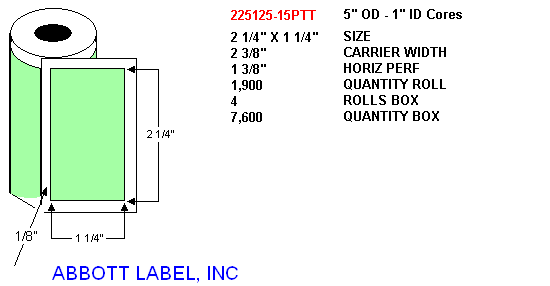

225125-15PTT	IMAGE	1	2 1/4 X 1 1/4 - 1	2 3/8	1 3/8	1,900	4	7,600	7

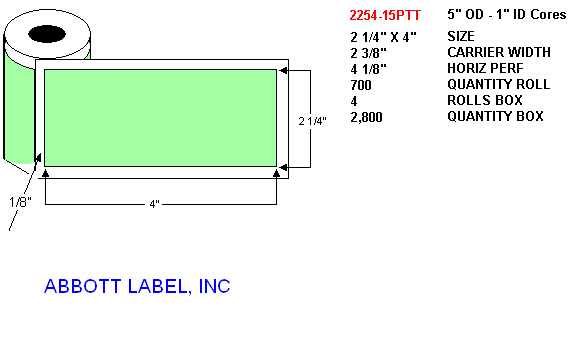

2254-15PTT	IMAGE	1	2 1/4 X 4 - 1	2 3/8	4 1/8	700	4	2,800	8
32-15PTT	IMAGE	1	3 X 2 - 1	3 1/8	2 1/8	1,240	4	4,690	10

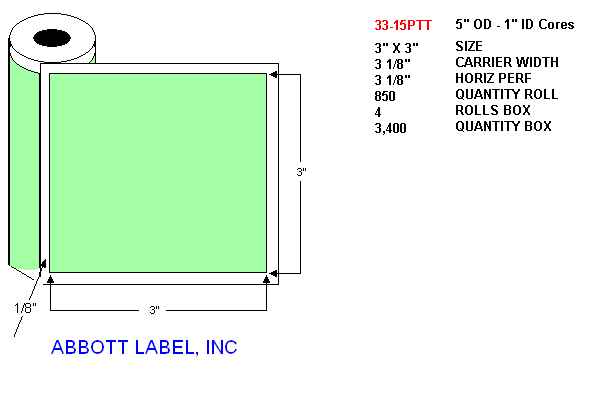

33-15PTT	IMAGE	1	3 X 3 - 1	3 1/8	3 1/8	850	4	3,400	10

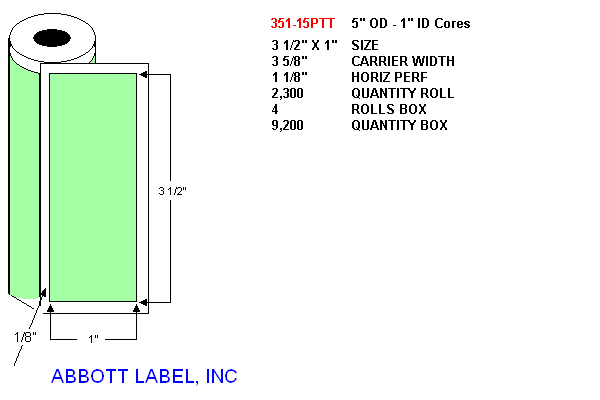

351-15PTT	IMAGE	1	3 1/2 X 1 - 1	3 5/8	1 1/8	2,300	4	9,200	11
41-15PTT	IMAGE	1	4 X 1 - 1	4 1/8	1 1/8	2,300	4	9,200	12
42-15PTT	IMAGE	1	4 X 2 - 1	4 1/8	2 1/8	1,250	4	5,000	12
43-15PTT	IMAGE	1	4 X 3 - 1	4 1/8	3 1/8	850	4	3,400	12

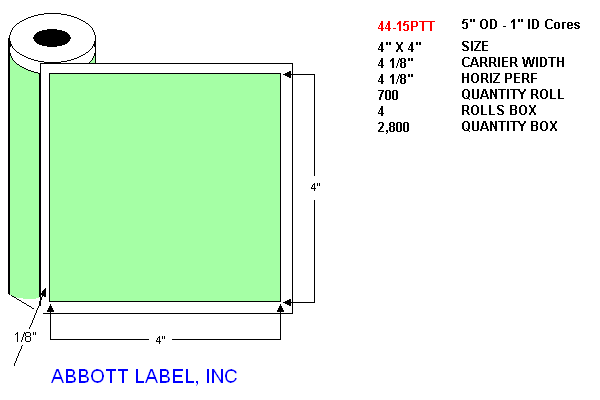

44-15PTT	IMAGE	1	4 X 4 - 1	4 1/8	4 1/8	700	4	2,800	13
46-15PTT	IMAGE	1	4 X 6 - 1	4 1/8	6 1/8	450	4	1,800	13
POLYESTER THERMAL TRANSFER LABELS ROLLED 5" OD - 1" ID Cores
Part Number	Image	#Ac	Label Size	Carrier Width	Horiz Perf	Qty Per Roll	Rolls Per Box	Qty Per Box	Wt. (lbs.) Per Carton
1251-1PTTPOLY	IMAGE	1	1 1/4 X 1 - 1	1 3/8	1 1/8	2,300	4	9,200	4

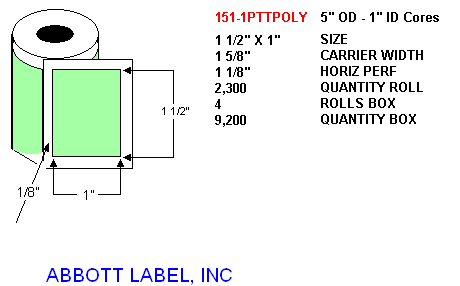

151-1PTTPOLY	IMAGE	1	1 1/2 X 1 - 1	1 5/8	1 1/8	2,300	4	9,200	5
275-1PTTPOLY	IMAGE	1	2 X 3/4 - 1	2 1/8	3/4	3,000	4	12,000	8
DIRECT THERMAL LABELS ROLLED 4" OD - 1" ID Cores
Part Number	Image	#Ac	Label Size	Carrier Width	Horiz Perf	Qty Per Roll	Rolls Per Box	Qty Per Box	Wt. (lbs.) Per Carton
151-14PDT	IMAGE	1	1 1/2 X 1 - 1	1 5/8	1 1/8	1,310	4	5,240	4

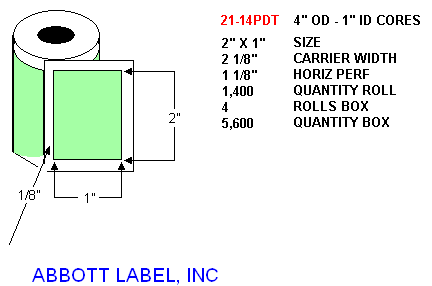

21-14PDT	IMAGE	1	2 X 1 - 1	2 1/8	1 1/8	1,400	4	5,600	5

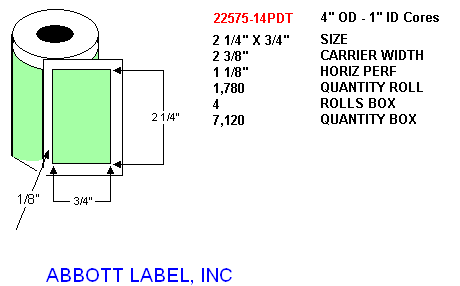

22575-14PDT	IMAGE	1	2 1/4 X 3/4 - 1	2 3/8	7/8	1,780	4	7,120	6
225125-14PDT	IMAGE	1	2 1/4 X 1 1/4 - 1	2 3/8	1 3/8	1,135	4	4,540	5

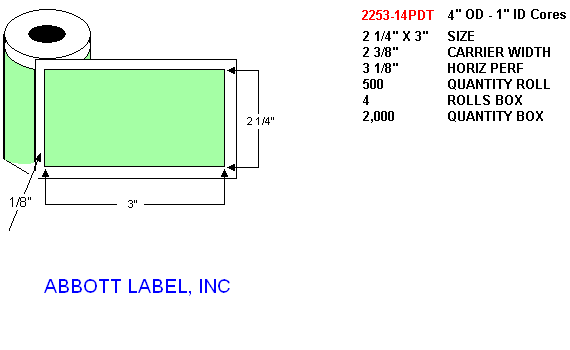

2253-14PDT	IMAGE	1	2 1/4 X 3 - 1	2 3/8	3 1/8	500	4	2,000	5
33-14PDT	IMAGE	1	3 X 3 - 1	3 1/8	3 1/8	500	4	2,000	7

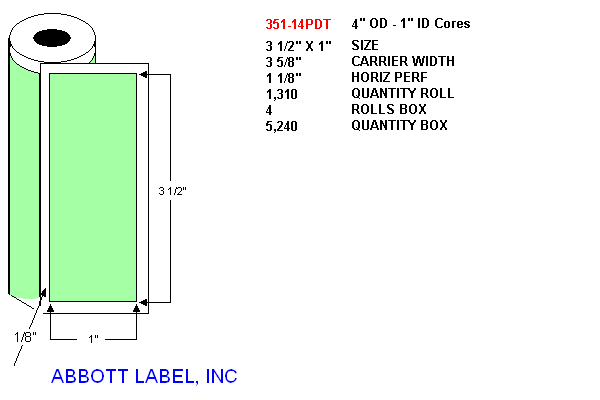

351-14PDT	IMAGE	1	3 1/2 X 1 - 1	3 5/8	1 1/8	1,310	4	5,240	7

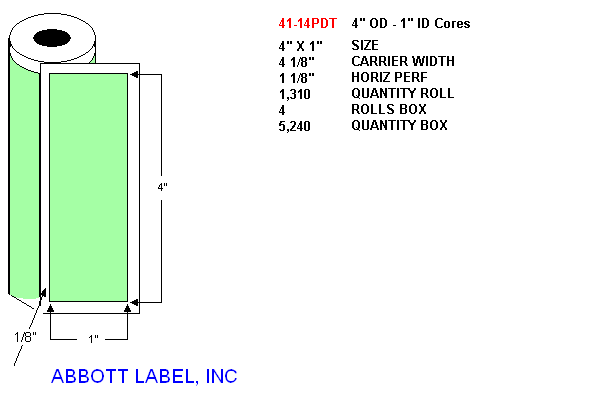

41-14PDT	IMAGE	1	4 X 1 - 1	4 1/8	1 1/8	1,310	4	5,240	8
415-14PDT	IMAGE	1	4 X 1 1/2 - 1	4 1/8	1 5/8	960	4	3,840	8

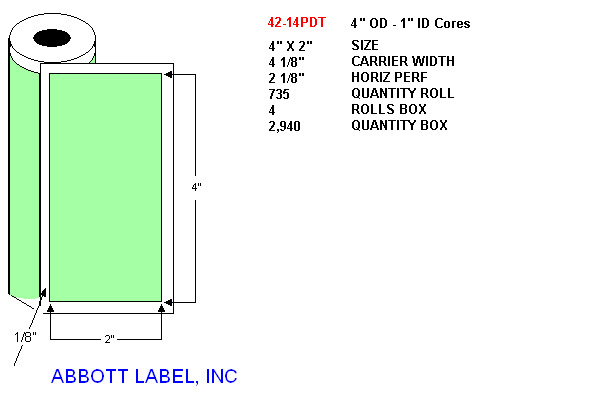

42-14PDT	IMAGE	1	4 X 2 - 1	4 1/8	2 1/8	735	4	2,940	8
43-14PDT	IMAGE	1	4 X 3 - 1	4 1/8	3 1/8	500	4	2,000	8
46-14PDT	IMAGE	1	4 X 6 - 1	4 1/8	6 1/8	250	4	1,000	8
DIRECT THERMAL LABELS ROLLED 5" OD - 1" ID Cores
Part Number	Image	#Ac	Label Size	Carrier Width	Horiz Perf	Qty Per Roll	Rolls Per Box	Qty Per Box	Wt. (lbs.) Per Carton

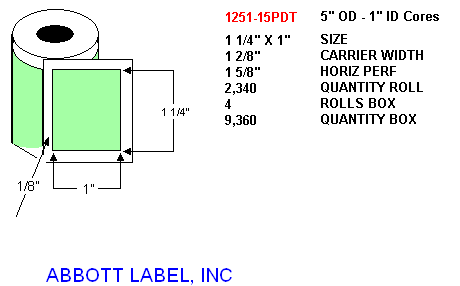

1251-15PDT	IMAGE	1	1 1/4 X 1 - 1	1 3/8	1 1/8	2,340	4	9,360	5

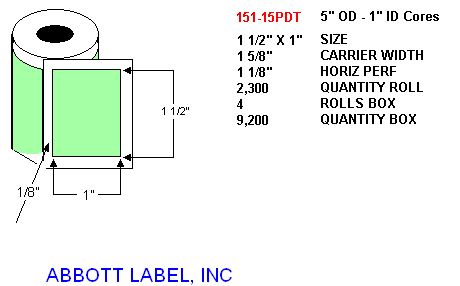

151-15PDT	IMAGE	1	1 1/2 X 1 - 1	1 5/8	1 1/8	2,300	4	9,200	5

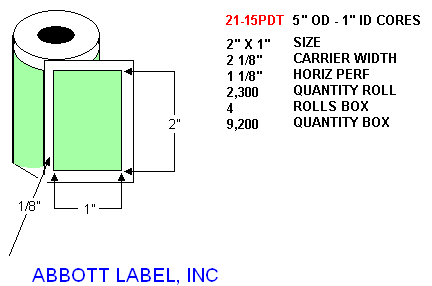

21-15PDT	IMAGE	1	2 X 1 - 1	2 1/8	1 1/8	2,300	4	9,200	7

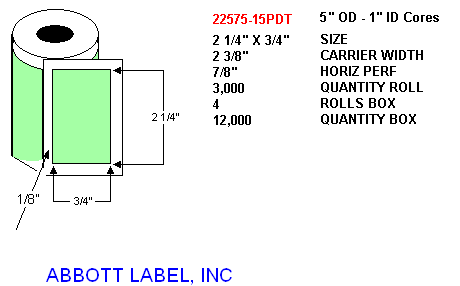

22575-15PDT	IMAGE	1	2 1/4 X 3/4 - 1	2 3/8	7/8	3,000	4	12,000	8

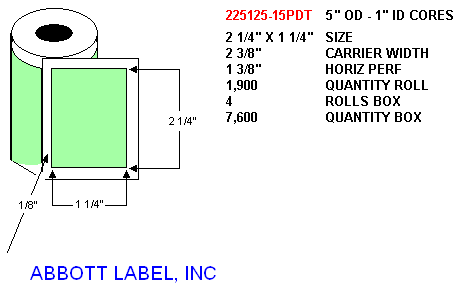

225125-15PDT	IMAGE	1	2 1/4 X 1 1/4 - 1	2 3/8	1 3/8	1,900	4	7,600	8

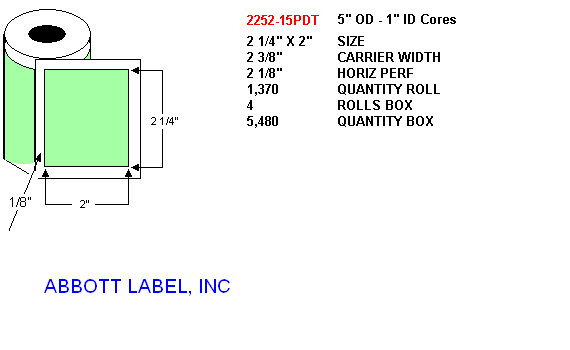

2252-15PDT	IMAGE	1	2 1/4 X 2 - 1	2 3/8	2 1/8	1,370	4	5,480	8

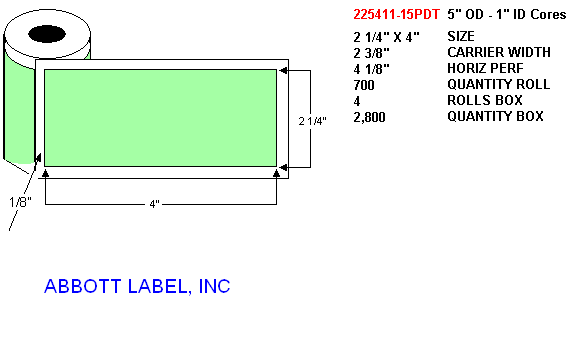

225411-15PDT	IMAGE	1	2 1/4 X 4 - 1	2 3/8	4 1/8	700	4	2,800	9

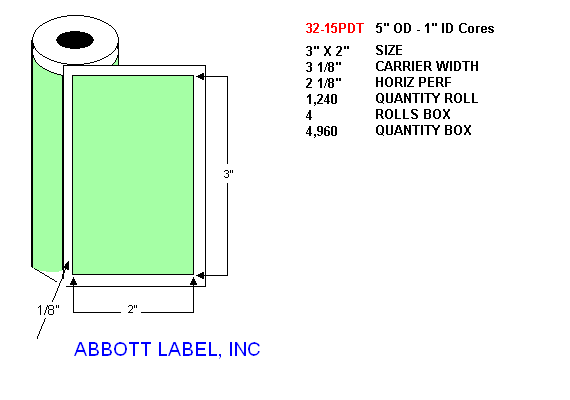

32-15PDT	IMAGE	1	3 X 2 - 1	3 1/8	2 1/8	1,240	4	4,960	10

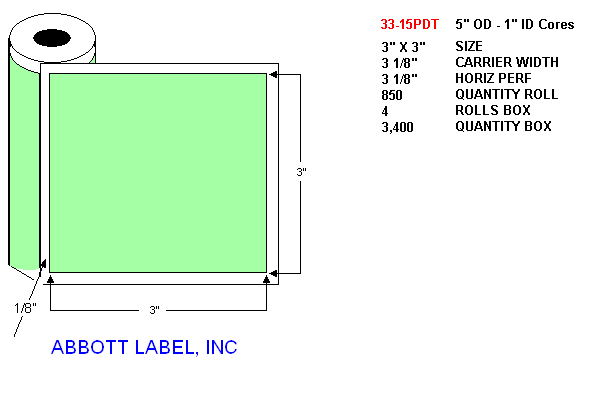

33-15PDT	IMAGE	1	3 X 3 - 1	3 1/8	3 1/8	850	4	3,400	10

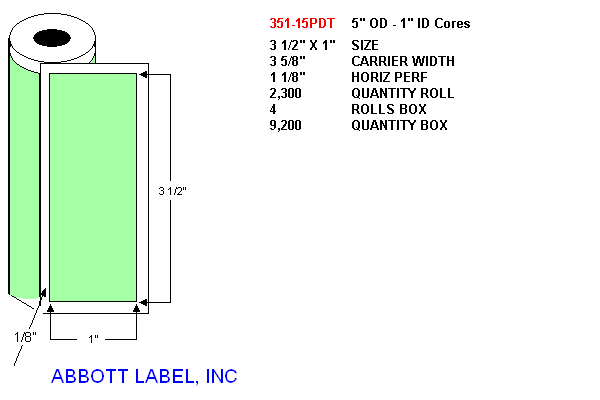

351-15PDT	IMAGE	1	3 1/2 X 1 - 1	3 5/8	1 1/8	2,300	4	9,200	11

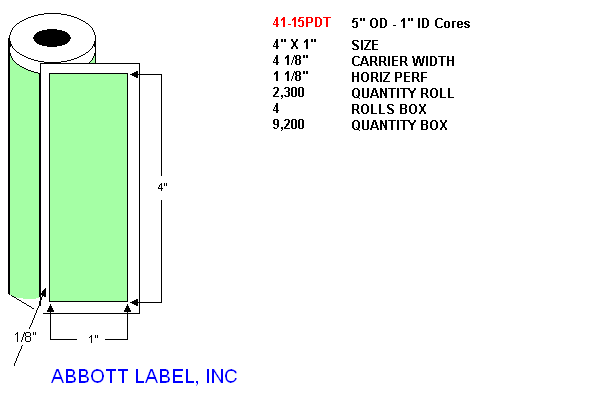

41-15PDT	IMAGE	1	4 X 1 - 1	4 1/8	1 1/8	2,300	4	9,200	13

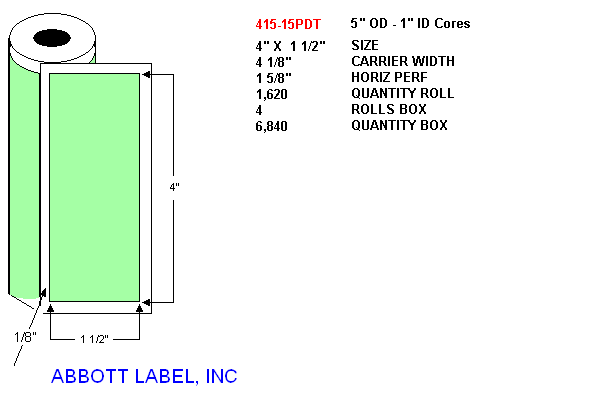

415-15PDT	IMAGE	1	4 X 1 1/2 - 1	4 1/8	1 5/8	1,620	4	6,480	13
42-15PDT	IMAGE	1	4 X 2 - 1	4 1/8	2 1/8	1,250	4	5,000	13

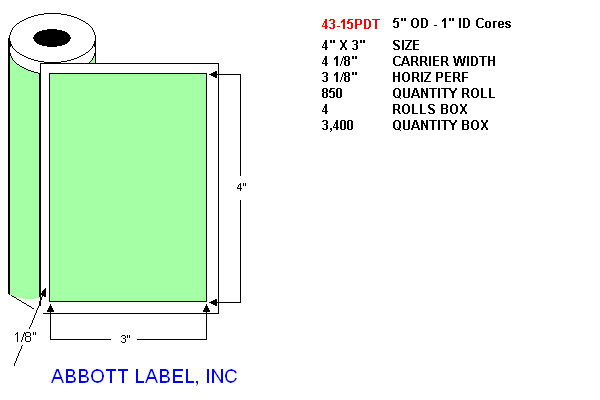

43-15PDT	IMAGE	1	4 X 3 - 1	4 1/8	3 1/8	850	4	3,400	13

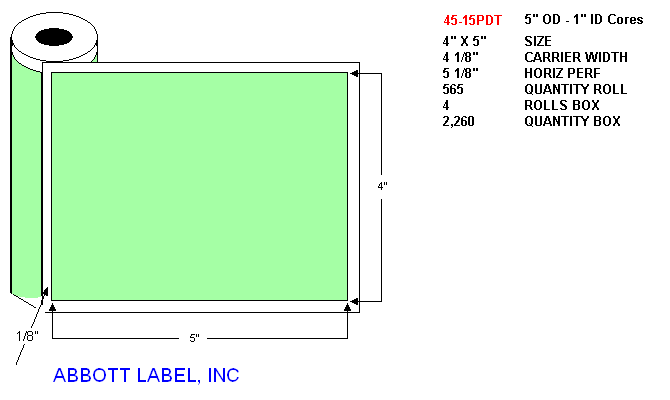

45-15PDT	IMAGE	1	4 X 5 - 1	4 1/8	5 1/8	565	4	2,260	14

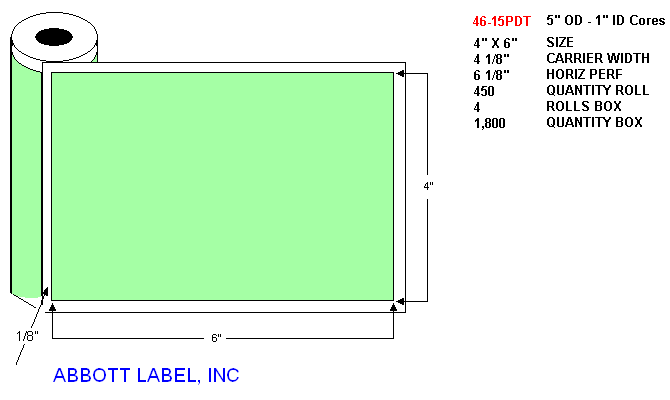

46-15PDT	IMAGE	1	4 X 6 - 1	4 1/8	6 1/8	450	4	1,800	14
